How to Choose a Reliable Custom Wooden Box for Electronics

What Should a Custom Wooden Box for Electronics Do?

Start with duty. A retail presentation box, a sales-demo kit, a corporate gift box, a reusable storage case, and a parcel-shipping package do not solve the same problem.

For most finished consumer electronics, a custom wooden box can provide:

• premium presentation and brand differentiation;
• organized placement of the device, charger, cable, adapter, manual, and accessories;
• controlled contact with visible surfaces;
• a defined opening and removal sequence;
• protection during normal display, handover, and storage; and
• a rigid inner presentation unit that can be placed inside a separate distribution pack.

It should not be described as an electrical enclosure for an operating product unless the design separately addresses heat, electrical safety, access, ventilation, and applicable product requirements. It should also not be called ESD-safe or transit-tested without the specified materials, test methods, configuration, and documented result.

Which Product Data Should Buyers Provide First?

Do not begin from a product name such as “earbuds,” “power bank,” or “smart device.” Begin from the controlled product envelope. Measure the final production unit, including protrusions, feet, buttons, switches, plugs, lenses, protective films, and any installed cover.

Provide the manufacturer with:

• maximum length, width, height, weight, and center-of-gravity concerns;
• the smallest and largest approved device variants;
• photographs or drawings showing the front, rear, sides, base, and top;
• screen, lens, polished surface, label, serial number, antenna, ventilation, and no-contact zones;
• button, switch, port, connector, speaker, microphone, and moving-part locations;
• cable, adapter, charger, remote, tool, manual, spare part, or promotional-item dimensions;
• the intended presentation orientation and removal motion; and
• whether the device is packed powered off, whether a battery is installed, and whether any spare battery is included.

If one box must serve several SKUs, identify the complete dimensional range. A cavity that fits the largest model may leave the smallest model loose; a cavity sized to the smallest may load a button or edge on the largest.

Which Structures Work for a Custom Wooden Box for Electronics?

The structure should follow the product shape, accessory count, user sequence, and display direction.

A drawer can create a controlled reveal and separate accessories, but it needs pull access, travel control, and a clear stop strategy. A hinged box makes the full set visible at once, but lid depth and hinge position must clear the device and insert. A removable tray can organize a second layer, but buyers should confirm where fingers go and how the loaded tray is supported.

Manufacturer Insight: Decide the construction after the finish direction

XRX’s confirmed manufacturing capability includes solid wood, MDF, plywood, MDF veneer, and natural wood veneer, together with painted, matte, and piano-lacquer finishes. From a manufacturing perspective, an opaque high-gloss concept, a natural-grain walnut concept, and a lightweight display kit create different substrate, edge, hardware, and sampling decisions. State the visible result and the construction—not only “wooden box.”

How Should Inserts Fit a Custom Wooden Box for Electronics?

An electronics packaging insert should control movement without creating harmful pressure. Map every intended contact area before selecting foam, EVA, fabric-covered components, wood dividers, or a hybrid insert.

Good contact areas are usually robust housing surfaces approved by the product team. Avoid assuming that a screen, camera lens, polished face, port, button, crown, hinge, speaker mesh, or connector can carry load. Provide finger recesses, pull tabs, or another removal path so the user does not pry against the device.

Separate accessories when their connectors, metal parts, or cables could rub the product. Cable cavities should accommodate the actual winding method; a perfectly sized empty pocket may be too small after a cable is tied, bagged, or fitted with a connector cap.

Insert material names do not define performance. “Foam,” “EVA,” and “velvet lining” still require construction, surface, color, thickness direction, cavity geometry, bonding, odor expectations, and sample approval. Do not invent a foam density or compression requirement unless the project has a measured need and an agreed test method.

Manufacturer Insight: Approve the loaded insert, not an empty cavity

XRX’s verified capability includes foam, EVA, velvet, PU leather, microfiber, fabric lining, custom inserts, and compartments. The useful manufacturing checkpoint is the complete loaded sample: device position, accessory separation, removal access, lid clearance, adhesive finish, visible edges, and repeated loading. An empty insert can look precise while still fitting the actual device poorly.

Does a Wooden Electronics Box Provide ESD Protection?

Not by default. Electrostatic-discharge duty depends on the sensitivity of the item and on a defined ESD control program, packaging material, handling process, and test requirement. The EOS/ESD Association’s fundamentals explain that protecting sensitive products involves materials and procedures that control charge generation and discharge.

For electrostatic-discharge-sensitive components, the official scope of ANSI/ESD S541-2026 covers packaging properties used to protect ESDS items during production, transport, and storage. A decorative wooden shell, ordinary foam, fabric lining, or painted surface does not prove compliance with that standard.

If the product is a finished consumer device that already has its own enclosure, ask the product engineer whether special ESD packaging is required. If bare circuit boards, modules, sensors, or sensitive components are packed, the ESD packaging may need to be a specified inner bag, tray, container, or material system inside the presentation box. Record the exact standard, resistance or shielding requirement, test method, labeling, and handling process instead of requesting “anti-static foam” as a vague upgrade.

What Changes When the Product Contains a Lithium Battery?

Battery status must be declared before the packaging and shipping plan is approved. In the United States, PHMSA states that lithium batteries are regulated as hazardous materials when offered for transportation in commerce. Requirements depend on factors such as battery chemistry, size, configuration, condition, mode, and whether batteries are contained in equipment, packed with equipment, or shipped separately.

The PHMSA Lithium Battery Guide for Shippers uses scenario-specific guides rather than one universal rule. For applicable configurations, the guidance addresses short-circuit or terminal protection, preventing shifting or damage, and protecting equipment from accidental activation.

A custom wooden box for electronics should therefore not be presented as the compliance solution. The shipper must identify the battery configuration, obtain the applicable product and battery documentation, and define the complete inner and outer packaging, marks, labels, quantity limits, mode, and carrier requirements. Damaged, defective, or recalled batteries require separate review and should never be treated as an ordinary gift-box shipment.

How Should a Custom Wooden Box for Electronics Work with Distribution Packaging?

The wooden box may be the premium presentation layer while a corrugated outer box, cushioning, corner protection, or another qualified system manages distribution hazards. The International Safe Transit Association recommends comparing supply-chain hazards with product vulnerabilities and selecting design and testing tools that match the distribution environment.

FedEx’s computer-shipping guidance likewise separates the product’s inner/original packaging, movement control, cushioning, and a sturdy outer box. The exact carrier method is not a universal specification for every XRX project, but it reinforces an important boundary: a rigid presentation box should not automatically replace the complete shipping pack.

If transport performance is contractual, test the final packed-product configuration. ASTM D4169-23 describes laboratory evaluation of shipping units using sequences of anticipated distribution hazards, while ISTA test procedures distinguish different levels and purposes of testing. Name the route, package weight, shipping unit, orientation, acceptance criteria, and test procedure instead of asking whether “the wooden box can pass a drop test.”

Which Branding and Finish Details Matter?

A custom wooden box for electronics often uses clean geometry and restrained branding. Laser engraving can suit visible-grain wood; metal logos can create a separate premium element; screen printing or foil processes can support controlled graphics; and painted or piano-lacquer surfaces can align with a device color system.

Confirm:

• logo artwork, size, location, color, relief, and minimum detail;
• whether branding crosses a veneer joint, curved edge, drawer line, or hardware zone;
• finish color, sheen, grain direction, approved physical reference, and acceptable variation;
• resistance expectations for normal handling, together with the sample or test used to judge them;
• serial-number, model, regulatory, recycling, battery, or warning information that belongs on the product, label, outer pack, or documentation rather than being assumed part of the wood-box decoration.

The box should not hide required device information or create confusion about which marks apply to the electronics, battery, packaging, or manufacturer.

What Common Electronics Packaging Mistakes Should Buyers Avoid?

Avoid these specification shortcuts:

1. approving the box from a rendering without a production-representative device;
2. sizing the cavity from nominal dimensions without tolerance or SKU range;
3. allowing the insert to press screens, lenses, buttons, ports, or switches;
4. placing metal accessories where they can rub the device;
5. calling ordinary foam or fabric “ESD-safe” without a standard and test data;
6. treating a wooden presentation box as the complete parcel pack;
7. ignoring battery configuration and shipping requirements until dispatch;
8. charging or operating a device in a closed decorative box without a separately engineered thermal and electrical design; and
9. approving finish, insert, hardware, and device fit as unrelated samples.

What Should the RFQ and Sample Approval Include?

A custom wooden box for electronics should start from one controlled brief covering:

• device and accessory drawings, maximum dimensions, weight, variants, and physical samples;
• protected surfaces, approved contact areas, controls, ports, ventilation features, and removal sequence;
• presentation, gift, storage, demo, reuse, and distribution duties;
• box structure, internal and external dimensions, material, finish, opening direction, and hardware;
• insert construction, lining, cavity layout, accessory separation, adhesive, and visible-edge requirements;
• ESD sensitivity and the exact protective packaging standard or product-engineering decision;
• battery chemistry, configuration, rating/documentation status, condition, shipping mode, destination, and responsible compliance party;
• logo artwork, device information, labels, warnings, manuals, and accessory inventory;
• order quantity, SKU count, MOQ response, sample stages, target date, outer pack, and delivery destination; and
• approval criteria, master sample, change control, inspection plan, and any packaged-product test protocol.

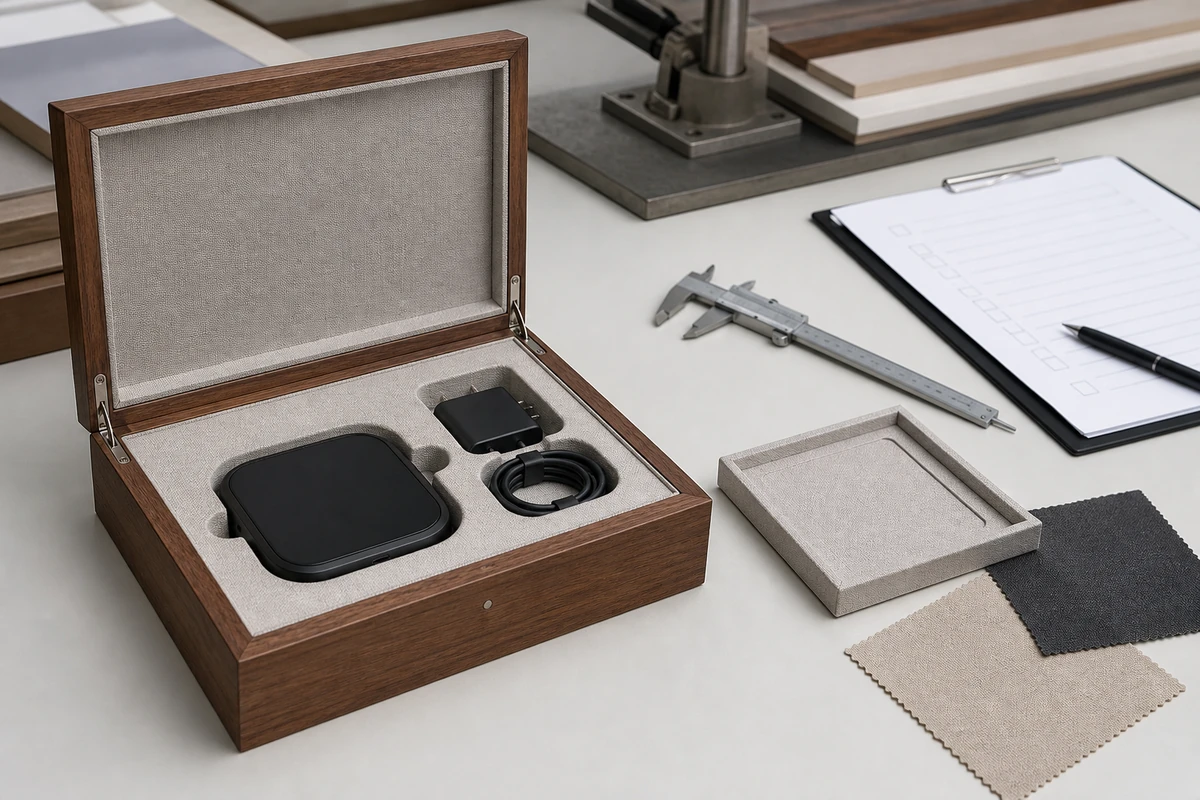

During sample review, load the actual product and every accessory. Check movement, surface contact, button activation, port clearance, lid clearance, cable fit, removal access, insert bonding, hardware operation, finish, logo, labels, inventory, and the complete outer pack. If a performance claim matters, record the test configuration and result rather than judging it by appearance.

The Custom Wooden Boxes Pillar explains the broader manufacturing scope, and the product archive shows available presentation directions. Buyers can send device drawings, accessory details, quantity, finish target, and packaging duty for review.

Frequently Asked Questions

Is a custom wooden box suitable for all electronics?

No. It is most suitable when premium presentation, organization, gifting, storage, or a reusable sales kit is required. Product size, weight, heat, battery status, ESD sensitivity, operating condition, distribution route, and compliance duties may require other packaging or enclosure components.

Can ordinary foam protect ESD-sensitive electronics?

Do not assume so. ESD protection requires specified materials, handling controls, test methods, and standards appropriate to the sensitive item. Ordinary decorative foam or fabric is not automatically conductive, dissipative, shielding, or compliant.

Can electronics be shipped directly in a wooden presentation box?

Only if the complete packed-product system has been designed and accepted for the intended distribution route. Many projects use the wooden box as an inner presentation unit inside a separate cushioned corrugated shipper.

What dimensions are needed for electronics packaging inserts?

Provide the maximum finished-device envelope, weight, variants, protrusions, controls, ports, lenses, protected surfaces, approved contact zones, accessories, cable winding method, presentation orientation, and removal path.

What should buyers declare about lithium batteries?

Declare the chemistry, configuration, rating and documentation status, whether the battery is installed or packed separately, its condition, quantity, transport mode, destination, and responsible shipper. Applicable rules must be checked for the actual shipment.

What should be checked on the sample?

Check loaded fit, movement, surface contact, control activation, lid and port clearance, accessory separation, removal, insert bonding, hardware, finish, logo, labels, outer packaging, and any agreed ESD, battery, or distribution test documentation.
